5 channel SPR with modular systems
5 channel SPR with modular systems

5 channel SPR with modular systems

Price 5000000 INR/ Piece

MOQ : 01 Piece

5 channel SPR with modular systems Specification

  • Automation Grade
  • Automatic
  • Power Supply
  • 230 V AC, 50/60 Hz
  • Interface Type
  • USB/Ethernet
  • Equipment Type
  • 5 Channel Surface Plasmon Resonance (SPR) Modular System
  • Frequency
  • 50/60 Hz
  • Number of Specimens
  • 5 parallel channels
  • Accuracy
  • <2% RSD
  • Features
  • Modular design, high-throughput, real-time analysis, easy maintenance
  • Resolution
  • 0.1 RU
  • Port Size
  • 1/16 or 1/8 Ferrule fittings
  • Gas Pressure
  • Up to 4 bar (if using gas channels)
  • Application
  • Biomolecular interaction analysis, drug screening, immunodiagnostics
  • Response Time
  • <1 s
  • Mounting Type
  • Benchtop
  • Measuring Range
  • 010,000 RU
  • Operating Voltage
  • 230 V AC
  • Max Height
  • 420 mm
  • Humidity
  • Ambient, 2080% RH (non-condensing)
  • Temperature
  • Ambient +5C to 50C, precise control via in-built system
  • Specimen Size
  • 11000 L sample volume
  • Test Range
  • 10^-6 to 10^-12 M (affinity)
  • Display Type
  • Software-based digital display via PC
  • Usage
  • Research laboratories, universities, pharmaceutical R&D
  • Capacity
  • Up to 5 analytes per run
  • Machine Weight
  • Approx. 18 kg
  • Test Speed
  • Up to 200 L/min (variable)
  • Test Width
  • Standard flow cell: 5 mm; Customizable
  • Test Stroke
  • 0100 mm, adjustable
  • Control Mode
  • Automatic/Manual via PC software
  • Data Export Formats
  • CSV, PDF, proprietary analysis formats supported
  • Fluidics
  • Microfluidic cartridges, low dead volume design
  • Cleaning Protocols
  • Automated and manual cleaning modes
  • Baseline Noise
  • <0.2 RU
  • Channel Configuration
  • 5 independent, individually addressable channels
  • Operating Environment
  • 1535C, non-condensing
  • Sample Injection
  • Automated, programmable via PC
  • Compliance
  • CE Certified, RoHS compliant
  • Language Support
  • English, multi-language available
  • Accessories Included
  • Standard tubing, starter reagents, software, user manual
  • Software Compatibility
  • Windows 7, 10 and higher
  • Surface Material Compatibility
  • Au, Biacore chips, custom sensor surfaces
  • Modularity
  • Easily upgradable channels and flow modules
  • Detector Type
  • Advanced CCD sensor
  • Optical Source
  • High-stability LED, 670 nm



About 5 channel SPR with modular systems



Introducing the remarkable 5 Channel Surface Plasmon Resonance (SPR) Modular System-your best choice for high-throughput biomolecular interaction analysis. Now available at a reduced price as part of our latest promotion and new release! This sublime system boasts advanced CCD detectors, high-stability LED optics (670 nm), and five independent, expandable channels. With automated PC-programmable injection, low baseline noise (<0.2 RU), and broad compatibility (Au, Biacore chips), it delivers reliable, sensitive results. Easy modular upgrades and flexible PC software make it the ideal solution for research laboratories and pharmaceutical R&D.

Unmatched Features for Versatile Research

The 5 Channel SPR Modular System offers advanced modularity, allowing easy upgrades and seamless integration for demanding research environments. Built for biomolecular interaction analysis, drug discovery, and immunodiagnostics, this benchtop equipment delivers automatic, real-time data through five independently addressable channels. With intuitive PC-based control, automated cleaning, and microfluidic cartridges, researchers benefit from efficient, reliable, and precise results every time.


Certified Quality with Sample Support

This system is distributed in the United States with CE and RoHS compliance, ensuring top-tier quality and safety. Samples are readily available for evaluation upon request. Payment terms are flexible, facilitating straightforward procurement. Packing & Dispatch are handled with care for secure shipping, ensuring prompt order completion and customer satisfaction. Comprehensive starter kits and user manuals further support a seamless user experience from order to setup.


FAQ's of 5 channel SPR with modular systems:


Q: How can I upgrade the 5 Channel SPR Modular System to accommodate future research needs?

A: The modular design allows users to easily add new channels or flow module upgrades, enabling flexible expansion without replacing the entire instrument.

Q: What types of specimens and surface materials does the system support?

A: This versatile system is compatible with Au surfaces, Biacore chips, custom sensor types, and supports sample volumes from 1-1000 L, making it ideal for diverse biomolecular applications.

Q: Where can the 5 Channel SPR system be installed and used most effectively?

A: It is optimized for research laboratories, universities, and pharmaceutical R&D settings where accurate, high-throughput analysis is required.

Q: What certifications and compliance standards does the system meet?

A: It meets rigorous CE and RoHS certifications, guaranteeing both safety and environmental responsibility.

Q: What are the benefits of automated sample injection and cleaning protocols?

A: Automated sample handling increases throughput and reproducibility, while programmable cleaning protocols maintain reliable performance and reduce manual intervention.

Q: How can data from experiments be exported and analyzed?

A: Results can be exported in CSV, PDF, or proprietary analysis formats for further processing, ensuring easy integration with various analytical workflows.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Food Testing Instruments Category

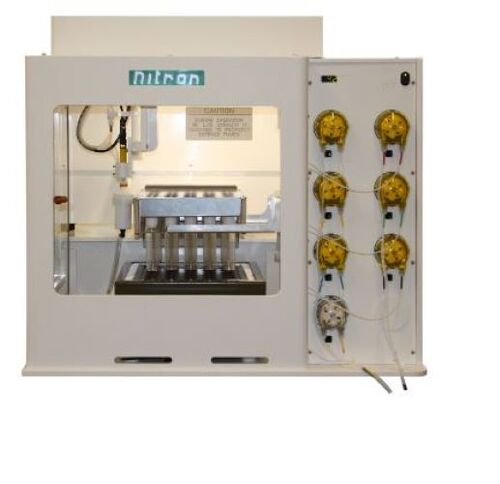

Hot Block Automated Digestion System- Vulcan
